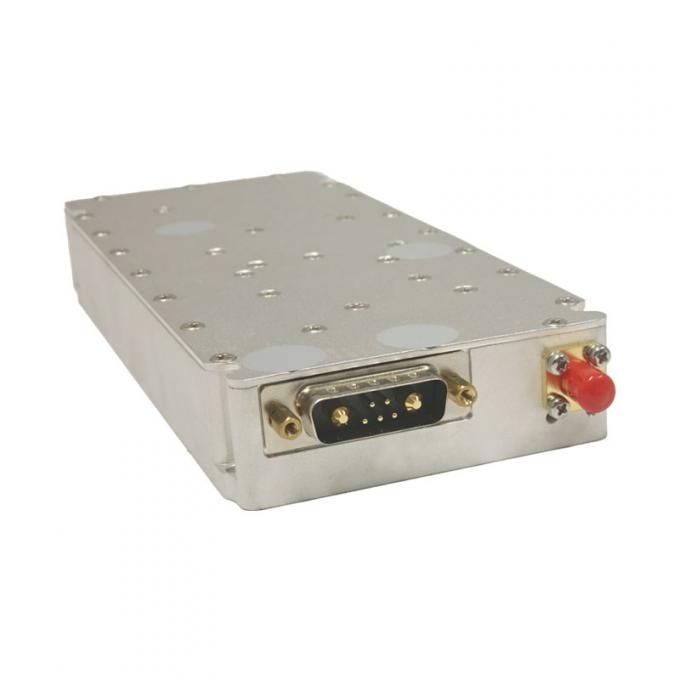

    100W RF Power Amplifier Module for Anti Drone System

    Ask Lasest Price
    Certification : ISO, RoHS
    Brand Name : Padifly/OEM
    Price : Negotiable
    Delivery Time : 5-8 Workdays
    Supply Ability : 5000PCS Per Month
    Payment Terms : T/T, PayPal
    • Product Details
    • Company Profile

    100W RF Power Amplifier Module for Anti Drone System

    100W RF Power Amplifier Module For FPV Autel Dji Boost FPV Range And Signal Strength
    100W RF Power Amplifier Module for Anti Drone System
    Specification
    Frequency
    5100-5900mhz
    Power supply
    100W
    Saturated output power
    50±1dBm @input=5dbm
    Gain
    50±2dB
    In-band fluctuation
    ≤2.0dB
    Out-of-band spurious
    9kHz~1GHz:≤-36dBm/30kHz
    1GHz~12.75GHz:≤-30dBm/30KHz
    Input VSWR/Out VSWR
    ≤2
    Gain temperature stability
    ≤±1.5dB
    Working voltage
    DC+32V
    Protection
    Temperature protection 90 degrees,Reverse Power 30W protection
    Working current
    ≤10.5A
    Power supply monitoring interface
    Power supply: Perform capacitive
    Pin1:485A Pin2:NC Pin3: GND Pin4: NC Pin5: PA_EN(High power on, Low level off) Pin6: NC Pin7: NC Pin8: 485B
    Iinput RF port
    SMA
    Output RF port
    N-F
    Dimensions
    77*180.6*24.5mm
    Working temperature
    -20~+55ºC

    100W RF Power Amplifier Module for Anti Drone System100W RF Power Amplifier Module for Anti Drone System100W RF Power Amplifier Module for Anti Drone System100W RF Power Amplifier Module for Anti Drone System100W RF Power Amplifier Module for Anti Drone System100W RF Power Amplifier Module for Anti Drone System

    Packaging & Shipping

    100W RF Power Amplifier Module for Anti Drone System

    Company Profile


    100W RF Power Amplifier Module for Anti Drone SystemWelcome to Shenzhen Padi Flying Intelligent Technology Co., Ltd: Your Partner in Drone Security. We are a leading provider of comprehensive solutions in the anti-drone industry, dedicated to safeguarding airspace and critical infrastructure from unauthorized drone activity.

    Why Choose Us:

    Experience: With years of experience in the anti-drone industry, we have a proven track record of success.

    Expertise: Our team consists of industry experts who are passionate about drone security and dedicated to providing the best solutions.

    Trust: We have earned the trust of our clients through our commitment to quality, innovation, and exceptional customer service.

    Choose Padi Flying Intelligent Tech Co., Ltd, we believe in a world where drone technology is used responsibly and safely. We invite you to explore our solutions and join us in. Our mission to secure the skies.

    100W RF Power Amplifier Module for Anti Drone System100W RF Power Amplifier Module for Anti Drone System
    FAQ

    1.Question : Why choose us ?
    Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .
    2.Question : What is the minimum order quantity(MOQ) ?
    Answer : No quantity limited , sample order or small order is acceptable.
    3.Question : Could you offer wholesale price ?
    Answer : Supportive,and wholesale price is better.
    4.Question : How long is your delivery time ?
    Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .
    5.Question : What is your product quality ?
    Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products meet your requirements .
    6.Question : Can you print my own logo on the products ?
    Answer : Yes , logo,packing design and other oem services are available .
    We will prepare artwork for visual confirmation , then sample confirm finally bulk production .
    7.Question : What's the payment terms ?
    Answer : T/T , Western union , Paypal , Alipay and so on.
