    5.8g 50W GaN Anti-Drone Module Power Amplifier Module

    Ask Lasest Price
    Brand Name : OEM
    Price : Negotiable
    Payment Terms : T/T, PayPal, Negotiable
    Delivery Time : 1-3 Working Days
    Supply Ability : 10000 Sets / Month
    • Product Details
    • Company Profile

    5.8g 50W GaN Anti-Drone Module Power Amplifier Module

    5.8g 50W GaN Anti-Drone Module Power Amplifier Module
    Product Parameters
    Brand Name
    PDFY
    Working frequency
    5725-5850MHz
    Saturated output power
    40±1dBm
    Gain
    42±2dB
    In-band fluctuation
    ≤2.0dB

    Out-of-band spurious
    9kHz~1GHz:≤-36dBm/30kHz
    1GHz~12.75GHz:≤-30dBm/30KHz
    Input VSWR
    ≤1.5
    Gain temperature stability
    ≤±1.5dB
    Working voltage
    DC+28V
    Working current
    ≤1.8A
    Power supply monitoring interface
    Power supply and power amplifier enabling: through the heart capacitor
    Output RF port
    SMA
    Dimensions
    29.7*131*15.5mm(excluding SMA)
    Working temperature
    -20~+55ºC

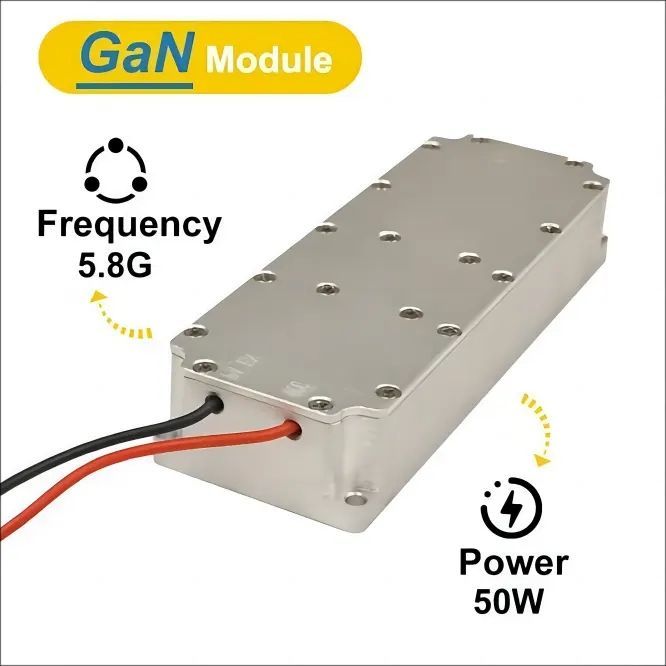

    Detailed Photos

    5.8g 50W GaN Anti-Drone Module Power Amplifier Module5.8g 50W GaN Anti-Drone Module Power Amplifier Module
    5.8g 50W GaN Anti-Drone Module Power Amplifier Module5.8g 50W GaN Anti-Drone Module Power Amplifier Module
    5.8g 50W GaN Anti-Drone Module Power Amplifier Module


    5.8g 50W GaN Anti-Drone Module Power Amplifier Module

    FAQ

    1.Question : Why choose us ?

    Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .
    2.Question : What is the minimum order quantity(MOQ) ?
    Answer : No quantity limited , sample order or small order is acceptable.
    3.Question : Could you offer wholesale price ?
    Answer : Supportive,and wholesale price is better.
    4.Question : How long is your delivery time ?
    Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .
    5.Question : What is your product quality ?
    Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products meet your requirements .
    6.Question : Can you print my own logo on the products ?
    Answer : Yes , logo,packing design and other oem services are available .
    We will prepare artwork for visual confirmation , then sample confirm finally bulk production .
    7.Question : What's the payment terms ?
    Answer : T/T , Western union , Paypal , Alipay and so on.
